Polyimide Tubing - Construction Options - Reinforcement Layer

Available in Stainless Steel T304V:



ShapeStocking Size (inch) *Stocking  Size (mm)
Round Wire0.001250.0318
0.001000.0254
Flat Wire0.0005 x 0.00300.0127 x 0.0762
0.0010 x 0.00300.0254 x 0.0762
0.0020 x 0.00600.0508 x 0.0152

 * Other sizes available - please inquire

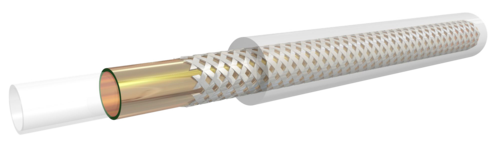

Medical Tubing with Braid Reinforcement on top of a Polyimid Layer

Reinforced Medical Polyimide Tubing with optional Outer Layer









Stainless Steel Reinforcement for Medical Polyimide Tubing

                   Braid

























 Stainless Steel Coil for Reinforcement of Medical Polyimide Tubing

                   Coil































         Polyimid Layer with braid reinforcement



Braid Reinforcement of a Medical Tubing with PTFE Liner with Polyimide Layer

                  PTFE Liner with polyimide layer

                          & braid reinforcement







 Medical Tubing PTFE Liner with Coil Reinforcement

                  PTFE Liner with coil reinforcement



Medical Polyimide Tubing with Coil Reinforcement between  Polyimide Layer and Outer Layer

 PTFE Liner with polyimide layer,

coil reinforcement & outer layer
